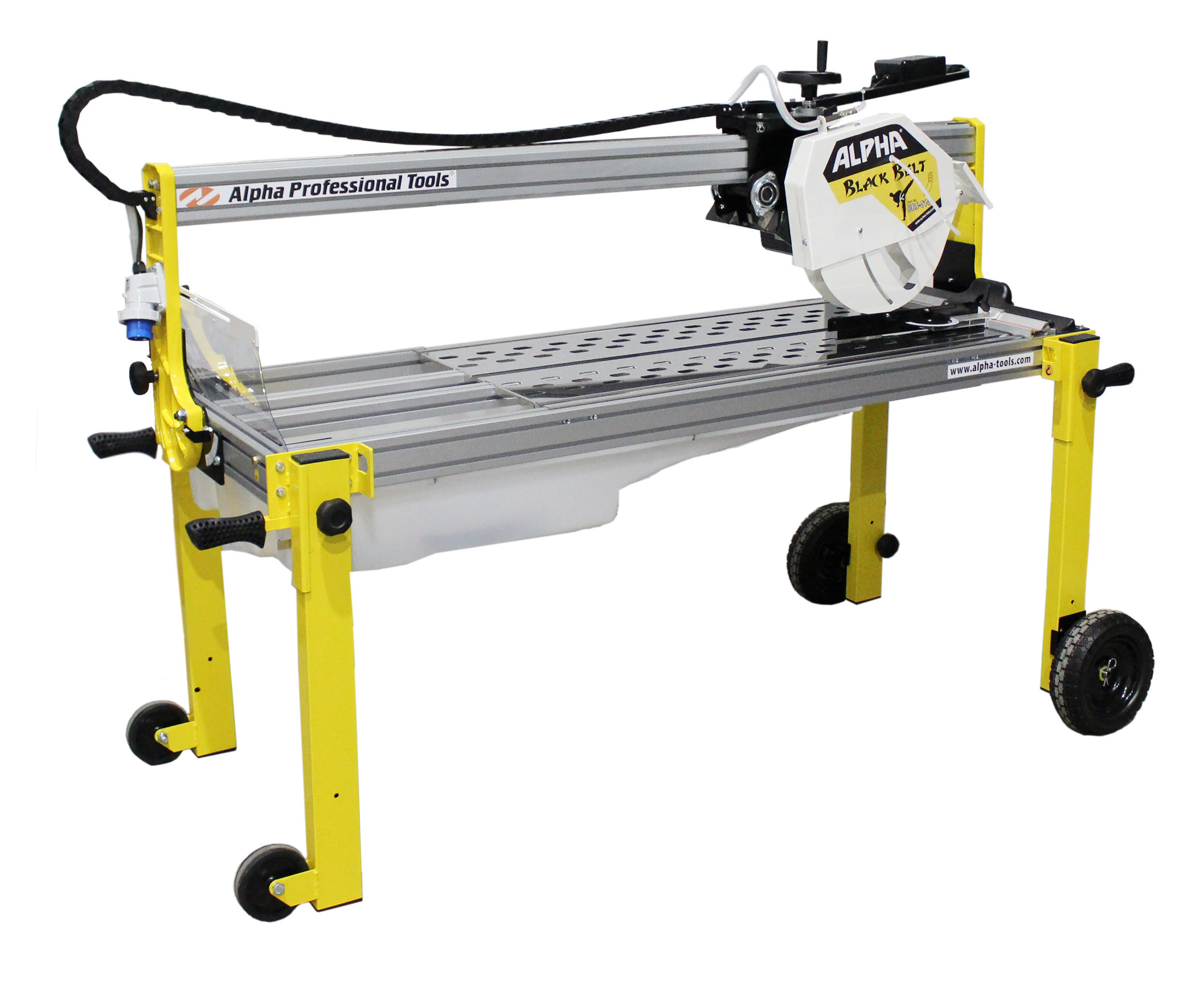

Alpha® introduces the Black Belt Rail Saw which is a heavy duty rail saw, ideal for tile installers, stone fabricators and hardscape contractors. It comes with many features such as a rugged aluminum table chassis for a stable operation, and a maintenance-free magnetic-induction water pump that delivers ample water to both sides of blade. This extremely reliable saw is equipped with 230v – 13.5amp single phase, 3hp (2.2kw), 2,800 RPM motor with direct drive shaft and accepts 12” & 14” blades.
- Heavy Duty Rail Saw, Ideal For Tile Installers, Stone Fabricators And Hardscape Contractors
- Rugged Aluminum Table Chassis For Stable Operation With A Long Life
- Equipped With 230V – 13.5amp Single Phase, 3HP (2.2KW), 2,800 RPM Motor With Direct Drive Shaft
- Supports 12” & 14” Blades With 1” And 60mm Arbors
- Cut Up To 4” Deep In A Single Pass, 5” With Step Cut
- The Cutting Head’s Mechanical Vertical Tilting System Allows For Cutting Depth Adjustment
- Stainless Steel Head Rails And Adjustable Armored Ball Bearings For Smooth And Precision Movement
- Cutting System’s Side Tilt Capability Eases Up To 45 Degree Cut (Ideal For Miter Cuts)
- Extremely Reliable, Maintenance Free Magnetic-Induction Water Pump Delivers Ample Water To Both Sides Of Blade
- Retractable Legs Include A Fall-Protection Device
- Table Handles And Heavy-Duty Wheels Make Easy Transportation
- Front, Back And Bilateral Blade Guards Minimize Exposure Of Blade For Safety And Reduce Water Splash
- Rip Cut Up To 51″ (130cm) and Diagonal Cut Up To 33″ (84cm)
- Maximum Load 485lbs (220kgs)
- Total Weight 213lbs (105kg)
Product Attributes
| Max Blade Diameter | 14″ |
| Product Weight | 231 lbs |
| Motor | 13.5 Amp |
| Power Requirements | 230v, 1ph |
| RPM | 2,800 |
| Tilting | Yes |
| Cutting Capacity | 51″ Max Cutting Length |
